RUBBER CUSHION ISOLATOR 4 LICENSE PLATE, aka FLAP - PLATE MOUNT at 4SMX.com or AHMACLAUGHLINS.COM or 4STROKESONLY.COM

Rubber Cushion aka Isolator
Licence Plate Mount - Flap

Click It And Go Big
Click It And Go Big

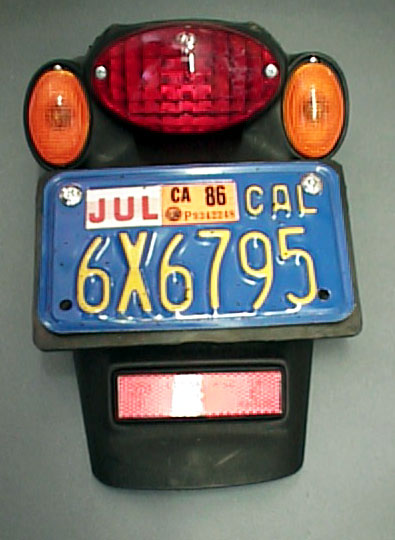

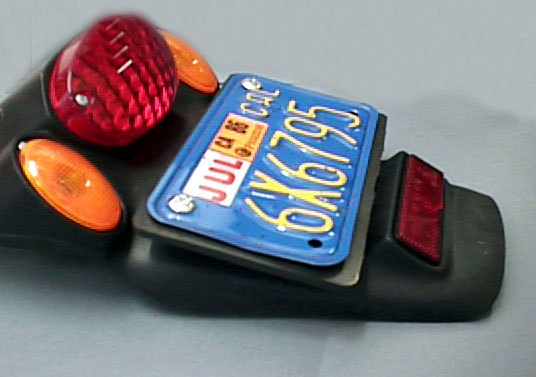

Good mounting platform for your license plate!

Keeps you license plate from getting broken into pieces because of vibration.
Works on the rear of most models of motorcycles

with a MX type rear fender with a below rear fender drop down taillight.

Examples would be:

Honda CRF 250R and X Model

KTM most with below rear fender all to 04

KTM EXC all to 03

KTM EXC 2004-2005 With Xtreme rear angle taillight

KTM 625 SXC 03-05

Also works on the taillight with built in turn signals.

All with a drop down type tailight aka rear mx fender. Good mounting platform for your license plate!

Keeps you license plate from getting broken into pieces because of vibration.

Works on the rear of most models of motorcycles with a slanted fender.

The back of the machine should have enough width to fit the flap side to side

Dim: 146.12mm appx

Dim 5.753" Appx

Examples would be:

Honda XR 250R 350R 400R 600R 650R +

Kawasaki KLR 250 650 +, KLX 250 300 650R

Suzuki DR 250 350 200 +, & Z 250 350 650

Yamaha XT TT TTR 225 250 350 600 660R

All with stock type rear slanted fender.

Rubber flap is stamped in neoprene rubber.

It is just the right size 4X7 to fit your US Motorcycle Plate.

4 holes are stamped in the flap to fit the US plate and 2 additional holes for

universal mounting appication. Rubber flap is stamped in neoprene rubber.

It is just the right size 4X7 to fit your US Motorcycle Plate.

4 holes are stamped in the flap to fit the US plate and 2 additional holes for

universal mounting appications.

Part # 44-0256 Part # 44-0234

Part # Description Description 2 Photo MSRP Price Price

44-0234 Rubber License Plate Flap aka Isolater. Fits: USA MC License Plate. Small 1/8" - 0.125 or 3.18mm Thickness of Flap Weight of flap 4 Oz The thickness of this part best suits being used on bikes that have a slant to the rear fender aka above rear fender type IE: XR 600R, 650L
or 250 - 400R and a-like. $7.26 $5.95

44-0256 Rubber License Plate Flap aka Isolater. Fits: USA MC License Plate. Medium 3/16" - 0.187 or 4.76 mm thickness of flap Weight of flap 5 Oz The thickness of this part best suits being used on bikes that have drop down type taillight. IE: KTM 450 EXC and alike $7.26 $5.95

44-0257 Neoprene Rubber License Plate Flap aka Isolater. Fits: USA MC License Plate. Large 1/4" - 0.250 or 6.36mm thickness of flap Weight of flap 7 Oz
call call

44-0649 License Plate Bolt and Nut Kit (4)

Bolt Kit for Part # 44-0234 or 44-0256 or 44-0257 license plate bolts. Included: 4 bolts, head dia 14mm phillips or flat blade screwdriver 16 mm long 6mm threads nylock nuts 4 washers 14mmX6.35mm hole $2.95 $2.50

44-0678 License Plate & Flap Nut and Bolt Kit (6) Included in kit are: 4 bolts phillips head with 14mm head large and 6mm threads for holding the plate down securely 4 washer and 4 nuts nylock type. Plus 2 smaller phillips head bolts for securing the flap to the bike and 4 washer and 2 nylock nuts. $3.25 $2.75

To Purchase Product

Click Above

WE DO NOT OFFER ONLINE ORDERING

or

To Order Please Call 1-818-765-5616 (PST)

(See Link 4 Hours Of Operation)

We Are Located In CALIFORNIA

* Most Headlights & Some Taillights are no longer sold each (ala carte)
Package sales only, but there are exceptions.
IE: example headlight, taillight, stator and 12v ac regulatror.
When ordering ask about this option.

* NSP - Special Order
NSP* = Non Stocking Part/Product
NSP* = a special order part/product that is non returnable and may require a prepaid in full payment.

* Minimum Order Required $20 USD
