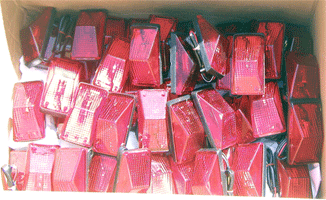

The latest batch of the tv set stopper - taillights are in stock come and get i'm while they last.
May 2009	June 2009

++++= Yea
Enduro Low Profile Tail Light Kit. Complete Package Kit. Fits: Honda XR 650L 1993 - Thru - 2009 And Other Related Models.
Part # 44-0184 ( includes Part # 44-0181, 44-0071, 44-0234, 44-0649, & 44-0501 )	Package Price MSRP $50.80 ( Actual - Price $42.95 )

Reference #	Part #	MSRP	AHM	Description	Photo
		Price	Price		Or Availability Cick Below For Photo

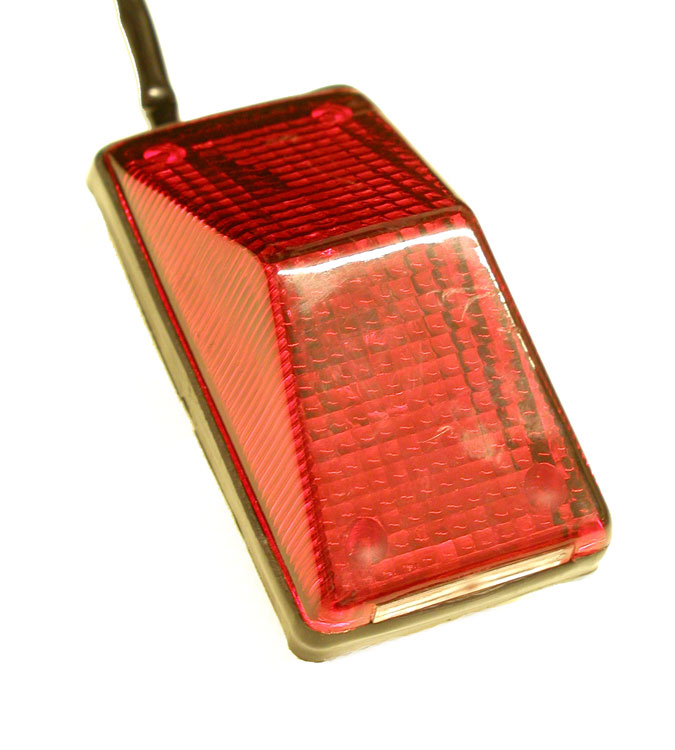

				Complete taillight includes: wire loom with a brake light wire, 3 wires. 1157- 198 small globe taillight bulb, housing, rubber, seal, 4 screws, length of wires 16" (wires are short you will need to make them longer), red lens with small clear section in the back for plate ilumunation if needed.
1		$24.95 ea	$24.95 ea	Taillight Universal Enduro Complete Assembly with brakelight and clear section for ilumunation of plate. Fits Honda XR 250R 86-95, 350R 85, 600R 85-00, 650R 00-07, 250L 91-96 & 650L Fits All The Years 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 & can be used as a universal taillight on many other models. (Not DOT) Above fender type.
2				Includes one extra bulb
3				(NOT SAE DOT Approved) (For Off Road Use Only)
4				Made In Taiwan - Tons!! Of Them Sold Since 2001
5	44-0181			Replica of Honda Taillight replaces the taillight on XR 250R 86-95 and adds a brake light
6	44-0181			Replica of Honda Taillight replaces the taillight on XR 350R 1985 and adds a brake light
7	44-0181			Replica of Honda Taillight replaces the taillight on XR 600R 85-00 and adds a brake light
8	44-0181			Replica of Honda Taillight replaces the taillight on XR 650R 00-07 and adds a brake light
9	44-0181			Low Profile Kit Fits: replaces the taillight on Hom XR250L 91-96
10	44-0181			Low Profile Kit Fits: replaces the taillight on Hom XR 650L 93-09
11	44-0181			& can be used as a universal taillight on many other models.

Reference #	Description	Photo 1	Notes	Other Info	Part #	Part #	Price	Photo 2
					Mfg #	By - AHMFSO		Check Below For More Info Photo & Availability
#12	• Taillight • Enduro Taillight Universal Complete Assembly with brakelight and clear section for ilumunation of plate. Fits Honda XR 250R 86-95, 350R 85, 600R 85-00, 250L 91-96. Honda XR 650R 00-07 and XR 650L 1993-2009 & can be used as a universal taillight on many other models. (NOT SAE DOT Approved) (For Off Road Use Only) For above fender types. (includes extra bulb)		See LPH	See LPM-Kit	N/A	44-0181	$24.95 ea	See It Bigger Go To Stator Page For lighting coil output needs
#13	• Replacement Taillight Lens • 4 the tailight above 44-0181		N/A	N/A	N/A	44-0182	Not Available AT This Time Was $13 - $10	N/A
#13	4 screws that match the unes used on this tailight					44-0183	N/A Yet
#13	Complete Tailight Kit					44-0184
#14	Replacement Bulb			N/A	N/A	44-0071	$1.95	N/A
Reference #	Description	Photo 1	Notes	Other Info	Part #	Part #	Price	Photo 2 or Check Below For More Info Photo & Availability
#15	• License plate mounting kit • • Complete • • Accessories or additional parts • for the tailight above #1 License plate mouning kit complete	No Photo Available Coming Soon	N/A	N/A	Call 4 morre info	Call 4 morre info	NOT AVAILABLE	N/A
#16	• License plate mouning kit • • with out bolts • • Accessories or additional parts • for the tailight above #1 License plate mouning kit with out bolts		N/A	N/A	N/A	44-0234	MSRP $9.95 Price $6.95	N/A
#17	• 4 Bolt Kit • • Accessories or additional parts • for the tailight above #1 4 Bolt Kit Includes 4 struss head phillips bolts, washers & nylock nuts.		N/A	N/A	N/A	44-0649	MSRP $2.95 Price $2.50	N/A
#18	• Extension wire kit • • Accessories or additional parts • for the tailight above #1 Extension wire kit Includes: 3 wires and loom and the needed connectores to attach the tailight to your XR-R machine. Includes a OEM type 3 male connectors, 3 male connector covers, 3 3 - color wires 20", 16" of vinyl coated fiberglass sleeving and 3 female connectors bullet type and 3 female bullet type covers.		N/A	N/A	N/A	44-0500	$13.95 Special Price $8.95	N/A
#19	• Extension wire kit • • Accessories or additional parts • for the tailight above #1 Extension wire kit Includes: 3 wires and loom and the needed connectores to attach the tailight to your XR-L 250 91-06 XR-L 650 93-09 machine. Includes a OEM type 3 3 - pin connector, 3 pin spade connectors, 3 3 - color wires 24", 18" of vinyl coated fiberglass sleeving and 3 female connectors bullet type and 3 female bullet type covers.		N/A	N/A	N/A	44-0501	$14.95 Special Price $9.95	N/A

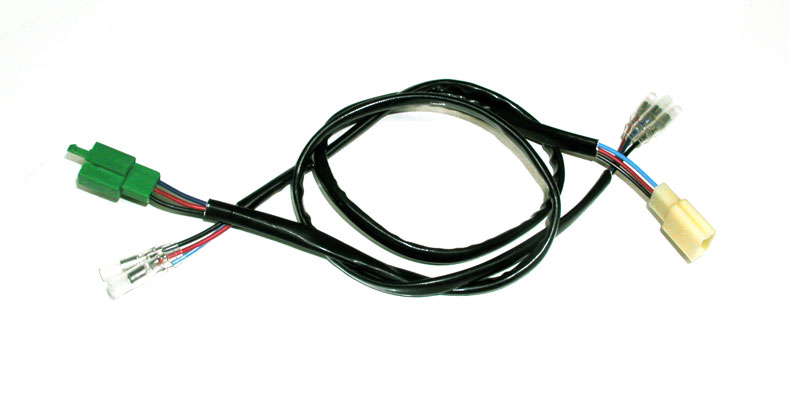

Wire Extension Kit For The XR-L Models (green 3 connector or yellow 3 pin connector)

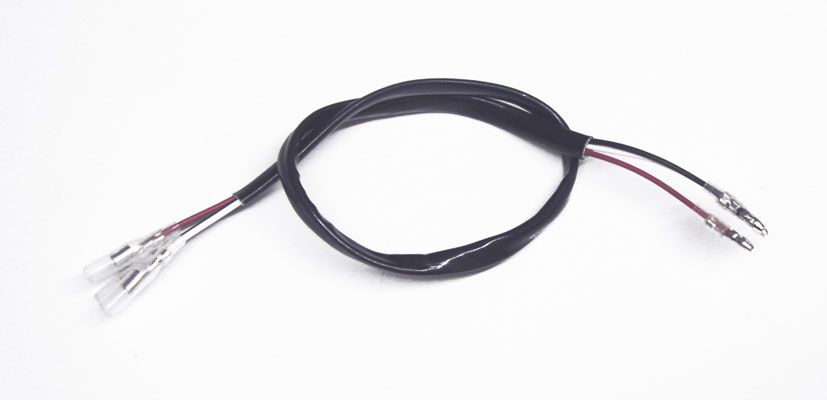

Wire Extension Kit for the XR-R Models

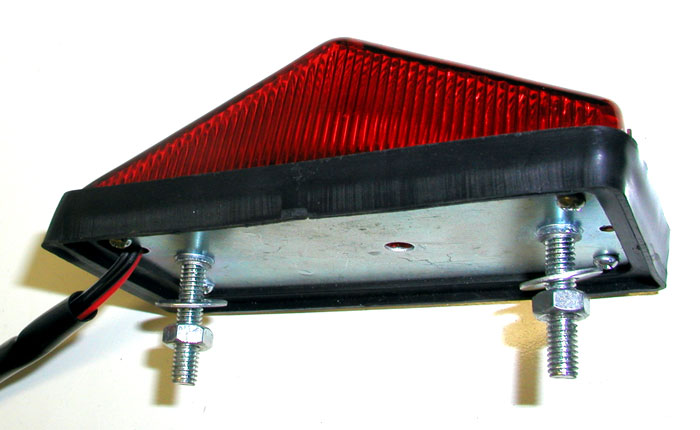

Dimensions of taillight

1 3/4" height

bullet connectors on the end

5" long

2 1/2 wide

16" Wire Length (wires are short you will need to make them longer)

12 1/4" Sheathing Length

bolt length 1"

Misc Photos Below

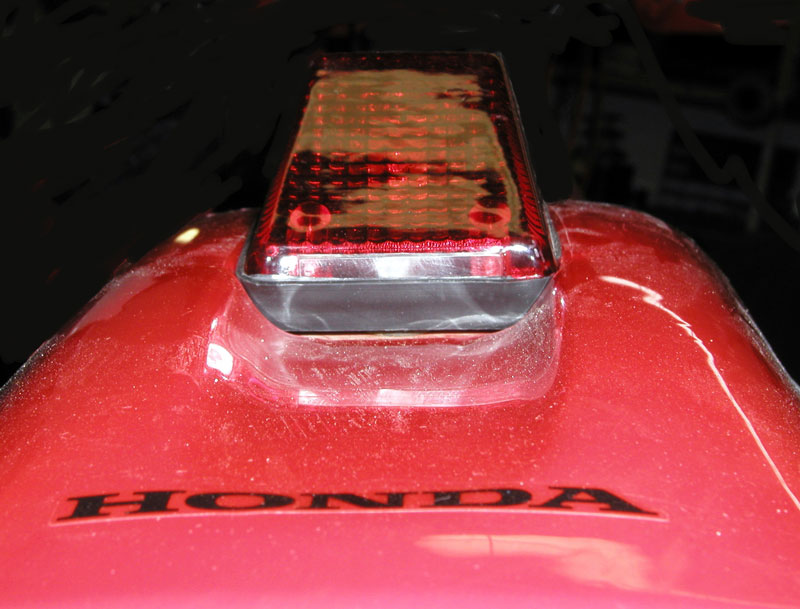

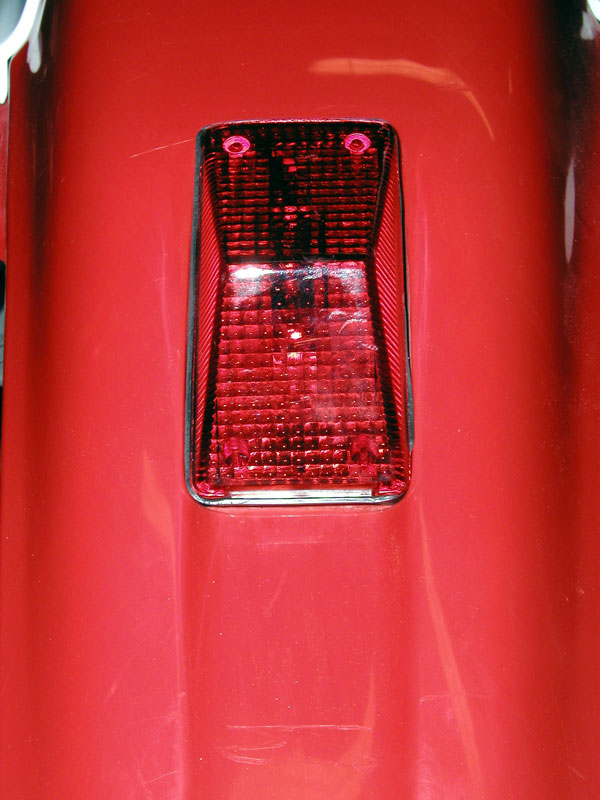

Mounted on the XR650R

Mounted on the XR650R

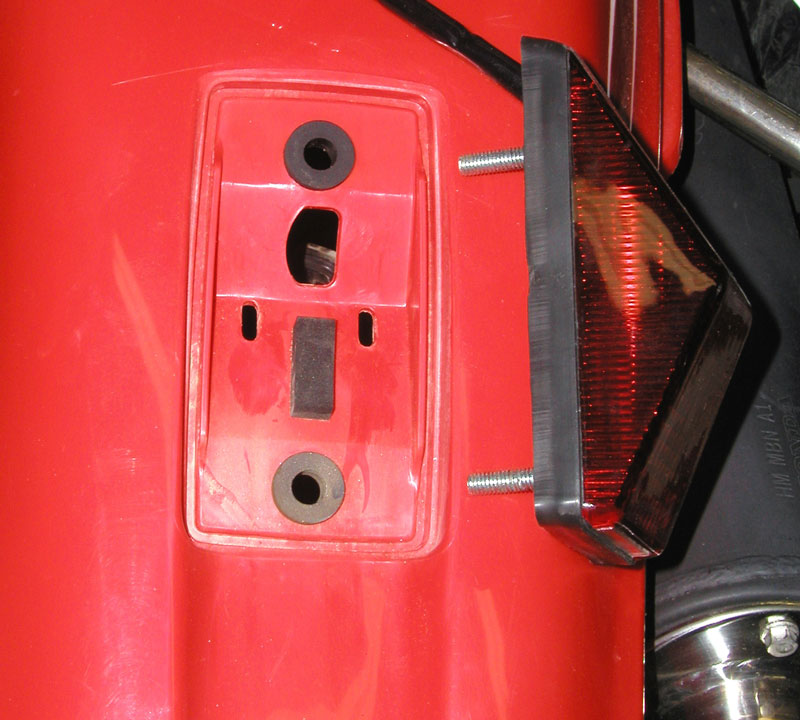

Ready to be mounted on the XR650R

The 44-0181 Tailllight works great on Honda XR650R 00-07 Replaces the stock taillight on the rear fender and does not blow out bulbs on a regular basis. Mount your plate, if your going "legal" on the top of the rear fender or use the LPH and mount the plate below the rear fender. The 44-0181 Taillight also works great on the Honda XR 250L 91-96 , XR 650L 93-09, XR 250R 86-95, XR 350R 1985, XR 600R 85-00 Mount your plate, if your going "legal" on the top of the rear fender Wires are a little short for these bikes but thats the way it goes, it is still a great taillight. Or use the 44-0181 taillight on your XR CRF 50F and be "legal" or use it on any other machine that you like. The Taillight Mounted On XR 250R 86-95, 250L 91-96, 350R 85, 600R 85-00 & 650L 93-09 Acerbis smoothe enduro rear fender shown The Taillight Mounted On XR 250R 86-95, 250L 91-96, 350R 85, 600R 85-00 & 650L 93-09 Acerbis smoothe enduro rear fender shown

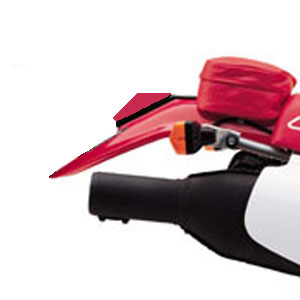

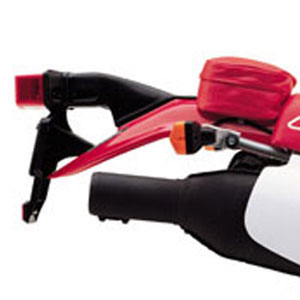

Honda XR 650L 1993 - Thru - 2009 Stock Rear End	Photoshop'd with taillight mock up

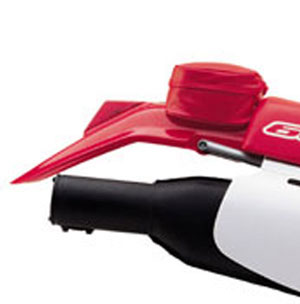

XR 600R 1985-2000 or XR's 85-07 off road taillight	Photoshop'd with taillight mock up

To Purchase Product Click Above WE DO NOT OFFER ONLINE ORDERING or 4 ORDERING INFORMATION SEE LINK ABOVE

• NEWEST PRODUCT | PRODUCTS PAGE 1 | PRODUCT PAGE 2 | PRODUCT PAGE 3 | PRODUCT PAGE 4 •  • PRODUCT PAGE 5 | PRODUCT PAGE 6 | PRODUCT PAGE 7  | PRODUCT PAGE 8 •  • PRODUCT LIST • LABOR • • CLOSE OUT SALE ITEMS | MAGAZINE | LICENSE PLATE INFO or REFERENCE • • EVENTS | FAQ | RUMORS or REALITY | E - START | WANTED | NEWS • • TECH INDEX | PHOTO GALLERY | SITE MAP | LINKS • • GO HERE TO LOCATE DISTRIBUTOR NEAREST YOU •  • ABOUT INFO  | E - MAIL | CONTACT INFO • • SHIPPING •

SALES OUT SIDE THE US All Sales Outside The US & Canada require english speaking. The best starting point is by sending a E Mail or a Fax regarding the product you are interested in buying There may be a fee for processing orders on sales outside The US. Please ask about sales outside the USA and the fees. Not all products are available for sale outside the US. Look for the below flags to designate sales outside the US. Most products do not have the flags designating them yet! Please Read The Terms & Conditions of Sales

* Quantity pricing available on some items = Look for a QP to designate quantity pricing.

* NSP - Special Order NSP* = Non Stocking Part/Product NSP* = a special order part/product that is non returnable and may require a prepaid in full payment.

* Minimum Order May Be Required $20 USD ** = Does not usually apply to products distributed and manufactured by ahmaclaughlins four strokes only

All Rights Reserved ©Copyright 1999-2055 A.H.MacLaughlins R&D U.S.A.™, FSO™, Four Strokes Only™ All other names and logos are the trademarks of their respective owners.Prices, specifications and product availability subject to change without notice.

The Explanations • Bronze = Police. • DL = Drivers License. • CDL = Comercial Drivers License. • Reg = Vehicle Registeration.

Who designed this tailight is a mystery. Someone In Taiwan Would Be My Guess. I Just Started Importing/Selling The Taillight In 2001. I still can not seem to get them (the people in taiwan) to fix the wires colors (red is not a ground!) or make the wires longer !! Oh Well! It Is Still A Good Tailight.
